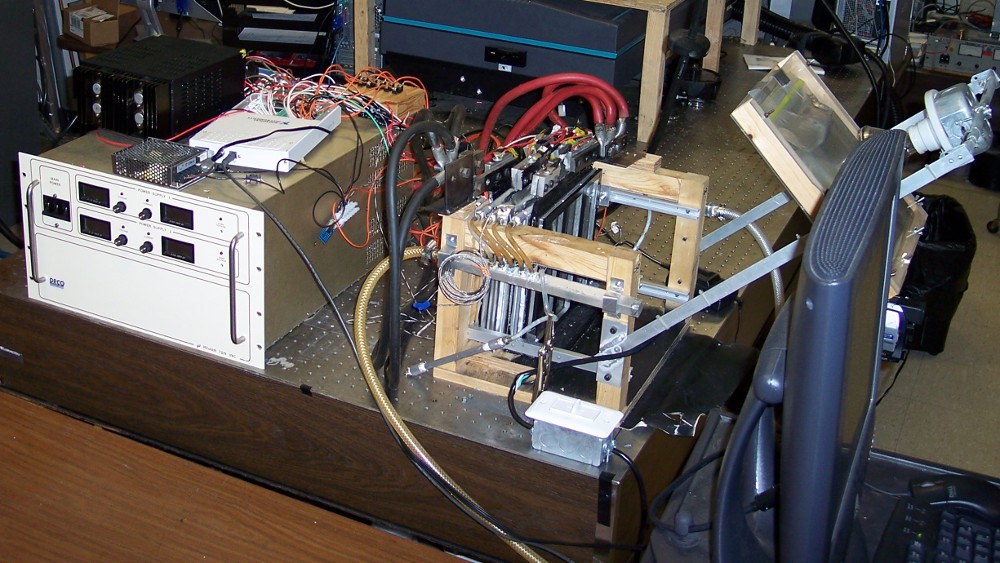

The battery test stand, showing the Power Ten 5800D-15/15 supply, data acquisition and control wiring, battery frame with illumination system for thermochromic liquid crystal temperature studies, and part of the control PC.
  • Tests battery strings up to 15 V
  • Charge currents 0-600 A
  • Discharge currents 0-600 A (at 15 V, current is proportional to voltage)
  • Monitors cell temperatures and voltages
